  • Sale
1 8

LS Head Gasket Kit Suitable For GM Chevrolet LS1, LS6, LQ4, LQ9 & 4.8/5.3/5.7 Engines

LS Head Gasket Kit Suitable For GM Chevrolet LS1, LS6, LQ4, LQ9 & 4.8/5.3/5.7 Engines

74CV001

$119.70 AUD
$119.70 AUD $241.84 AUD
Shipping calculated at checkout.

Compatible with:
Suitable for GM Chevrolet LS1/LS6/LQ4/LQ9/4.8L/5.3L/5.7L/6.0L.
These gaskets can also be used with LS3, LS2, and 6.0L iron blocks, as well as 4.8L/5.3L and LS1/LS6 applications.

Description:
The head gasket is the key component of the engine. It seals the internal combustion process, ensures maximum compression, and prevents coolant and oil from mixing.
The head gasket set is combined with a conversion gasket set / lower gasket set to form a full gasket set for the entire engine. Cylinder head bolts hold the cylinder head and gasket in place, ensuring reliability under high pressure. Replace worn gaskets and bolts promptly to maintain engine performance.

Feature:
Easy to install.
Direct Replacement.
Highly durable and less prone to breakage.
High pressure, high temperature, and corrosion resistance.

Specification:
Warranty: 1 Year
Type: Head Gaskets Set
Material: Metal & Plastic
Placement on Vehicle: Engine Compartment
OEM Number: Suitable for 12622033, T598129, 12585673, 12639249, 12573460, 12630223
Interchange Part Number: Suitable for 12558178, BTR73450, 12617944, 12612350, 126302, 12633904, 12637683

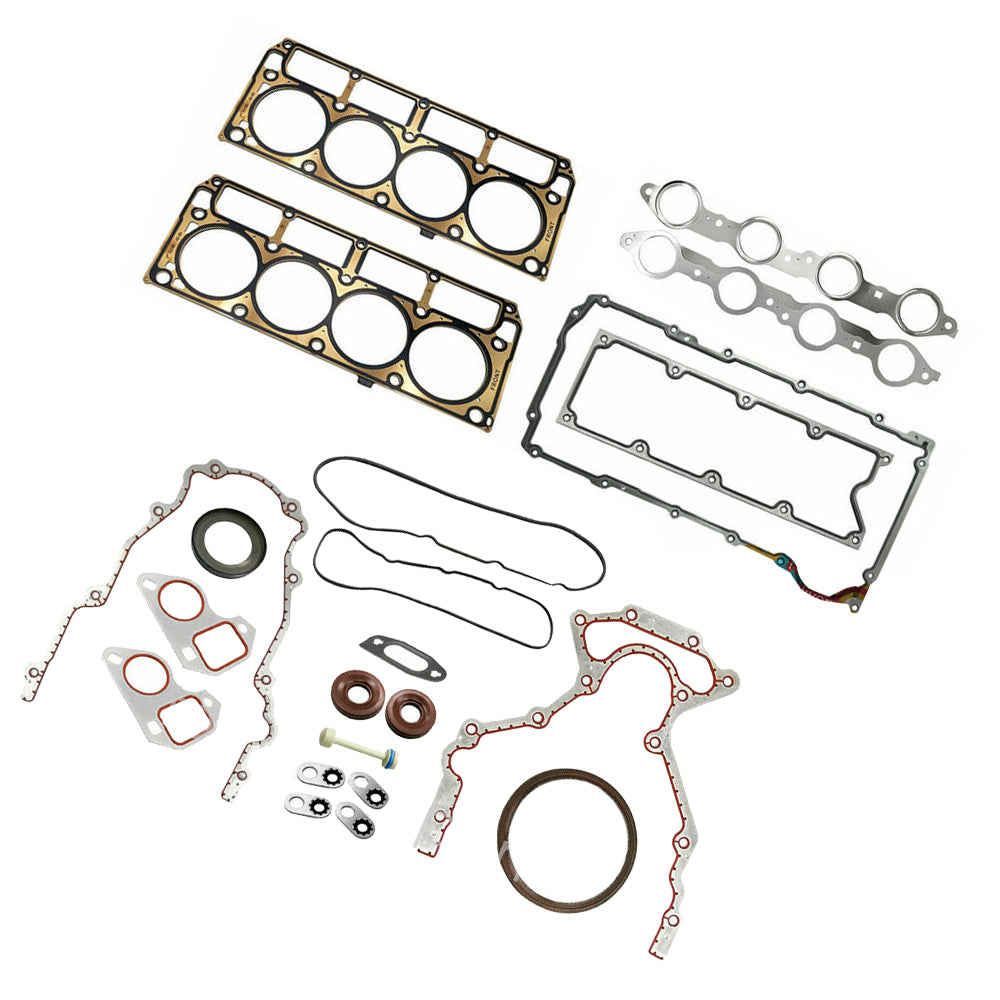

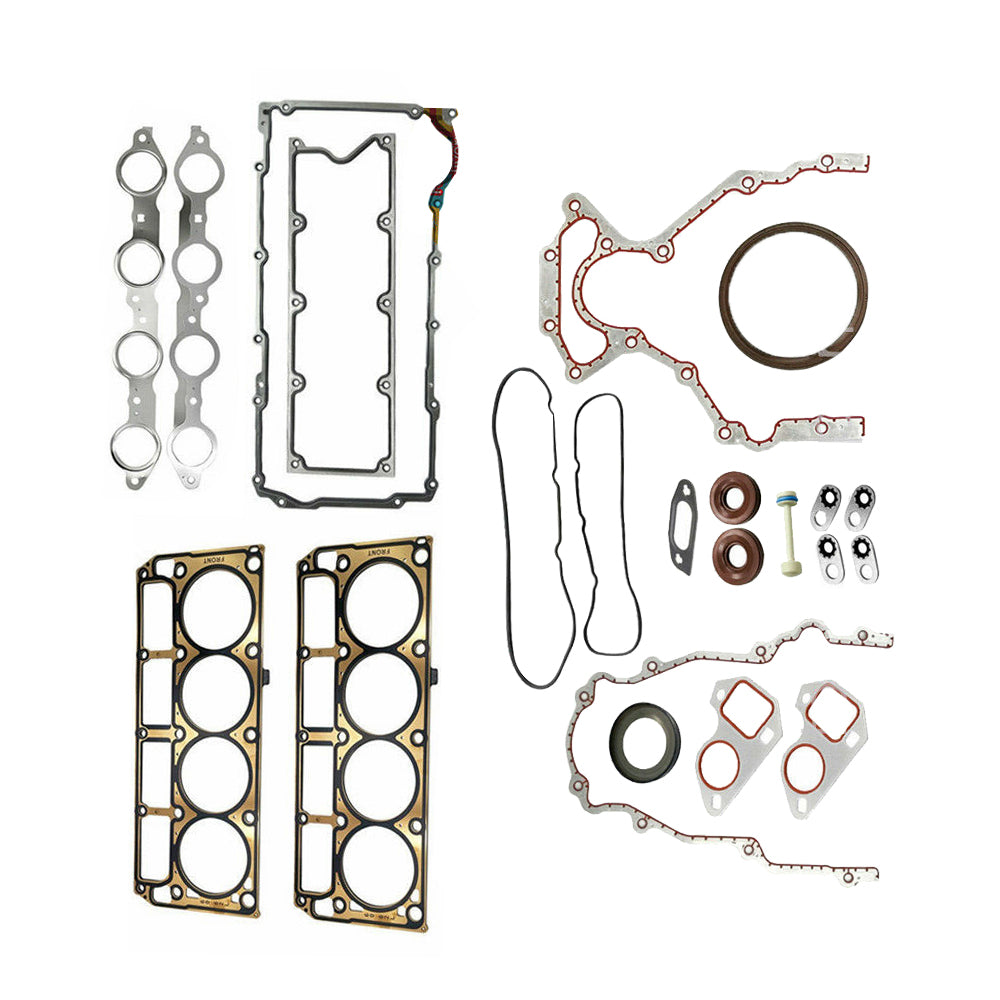

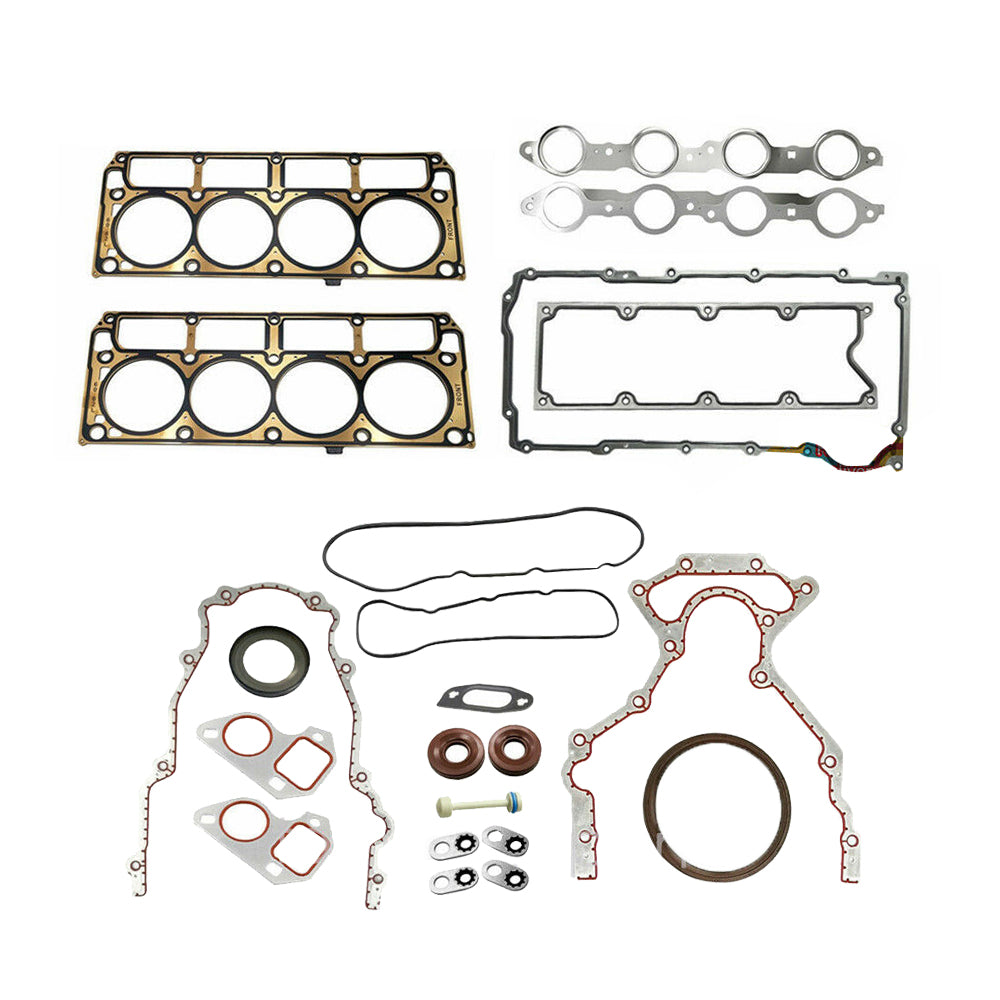

Package include:

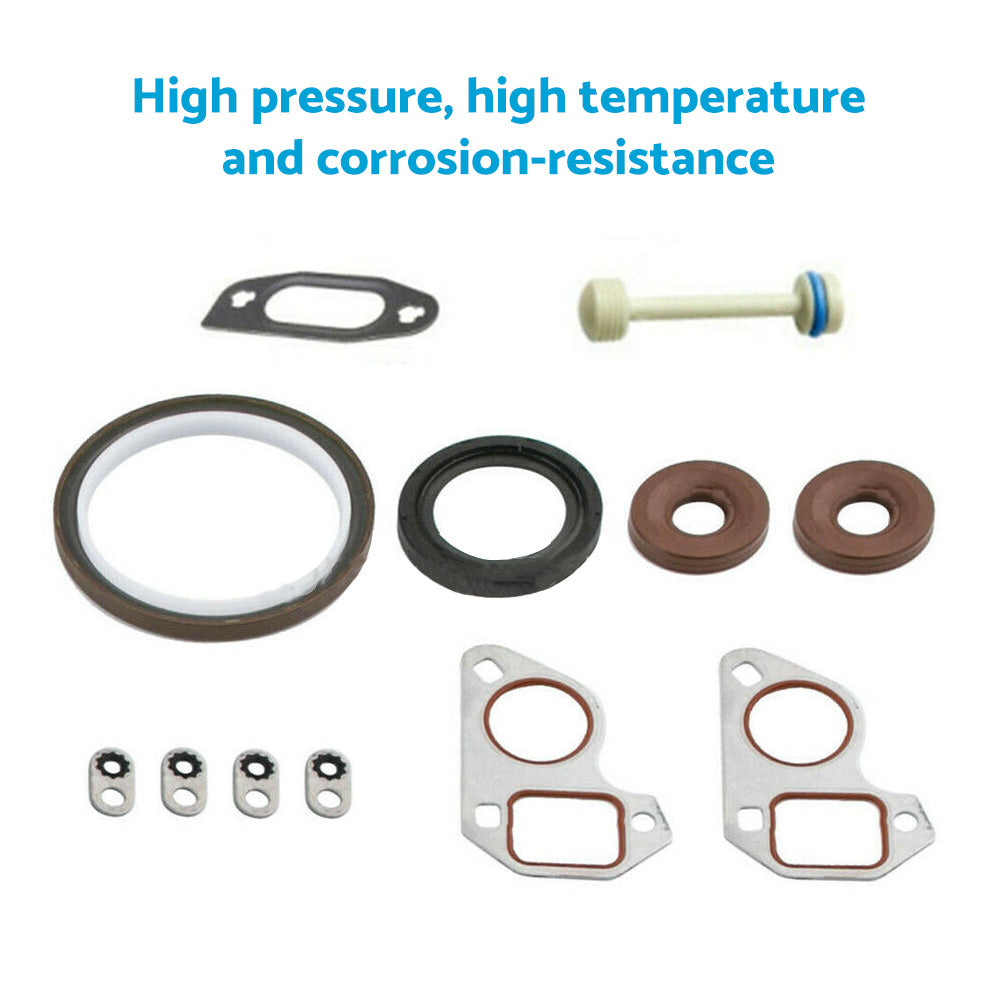

1x Gen III Valley Cover Gasket 12558178, MS19328, 8125581780
2x LS1/LS2/LS3 Header Gasket 12617944, 12555289, 12558573, 12600530

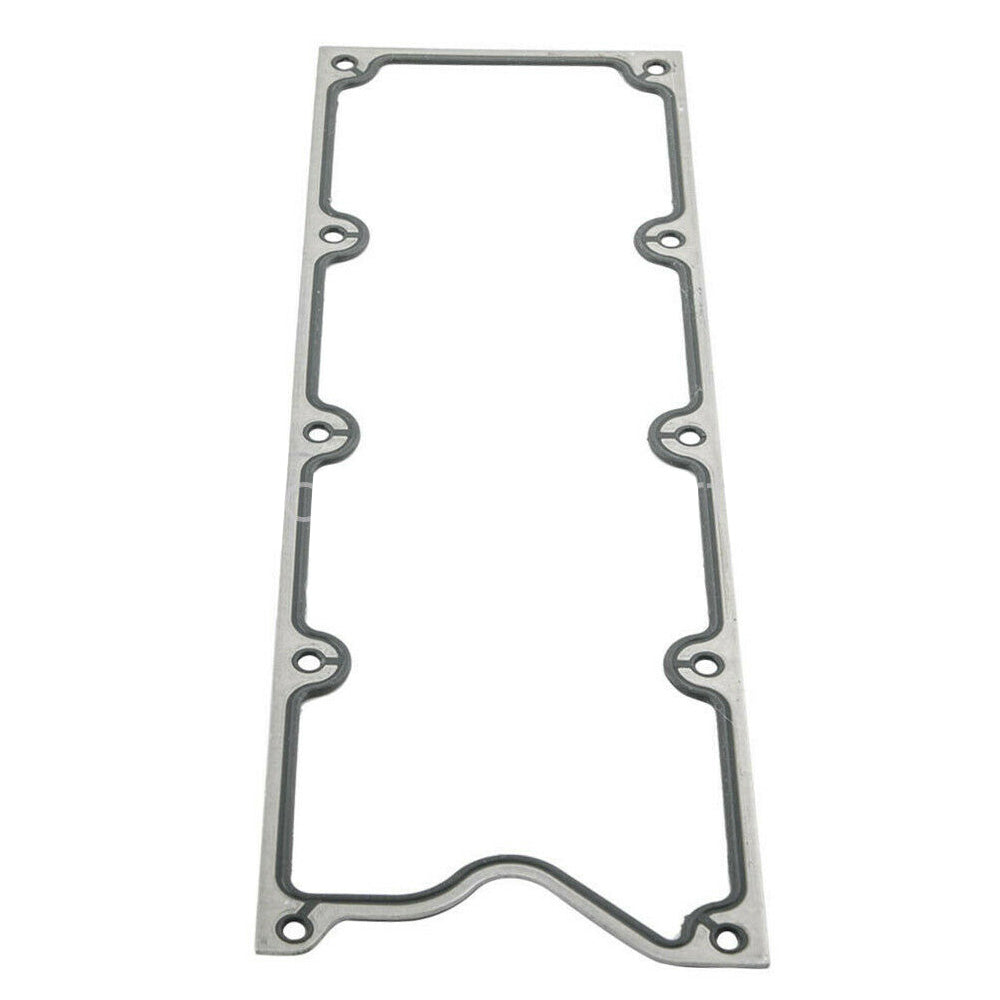

1x LS Oil Pan Gasket 12612350
2x LS Water Pump Gasket 12630223

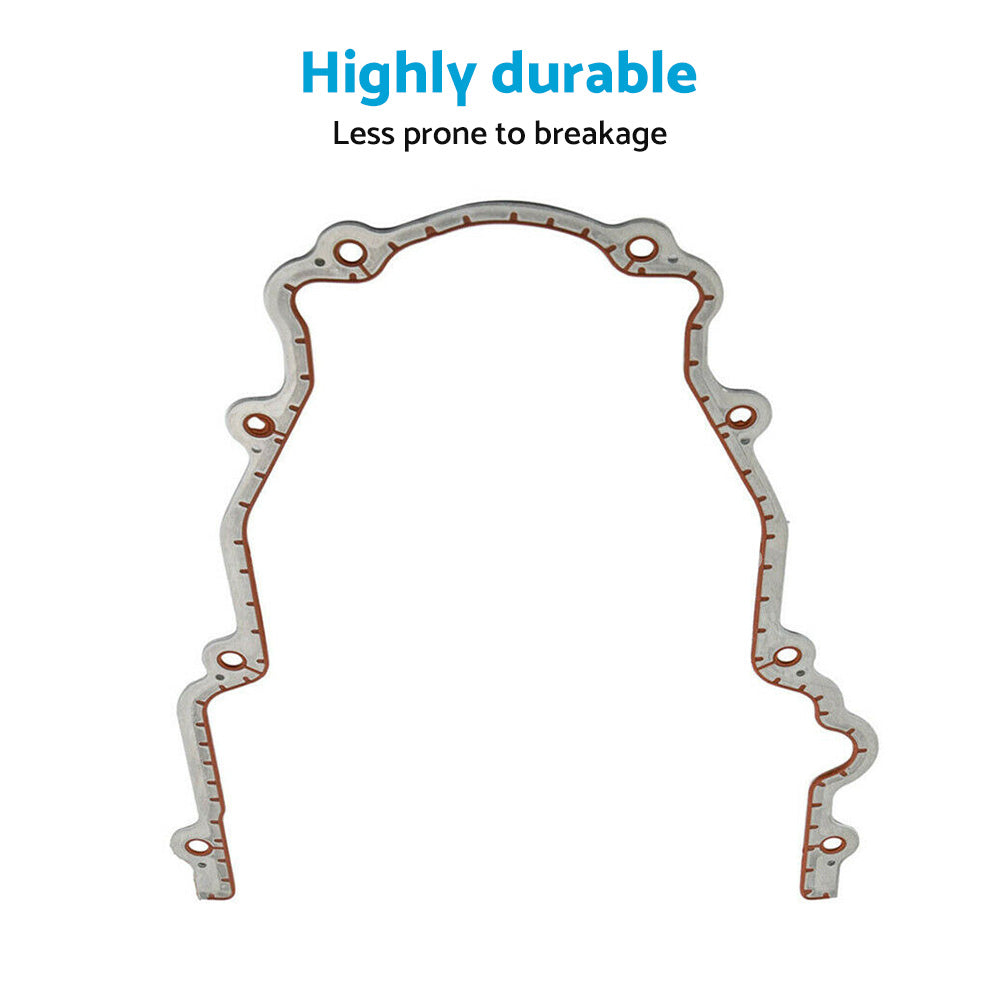

1x LS Front Cover Gasket 12633904
2x LS Valve Cover Gasket 12612045
1x LS Damper Seal
1x LS Rear Cover Gasket 12639249
1x Rear Main Crank Seal 89060436
4x Water Crossover/Block Off Gaskets 12551933
1x Oil Filter Adapter Bypass Gasket 12611384 12558178
2x Knock Sensor Grommet 12558177

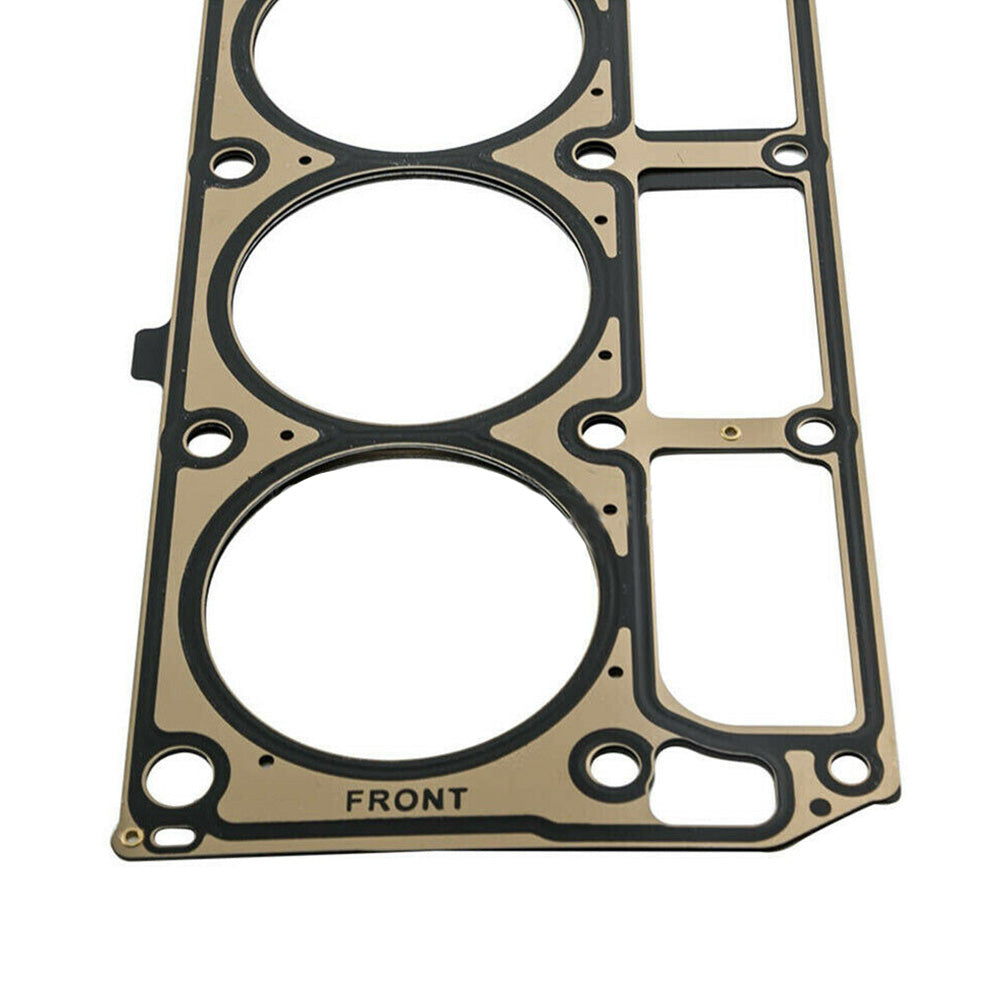

2x Multi-Layer Steel (MLS) Head Gaskets for LS9 engines 12589226

Note:

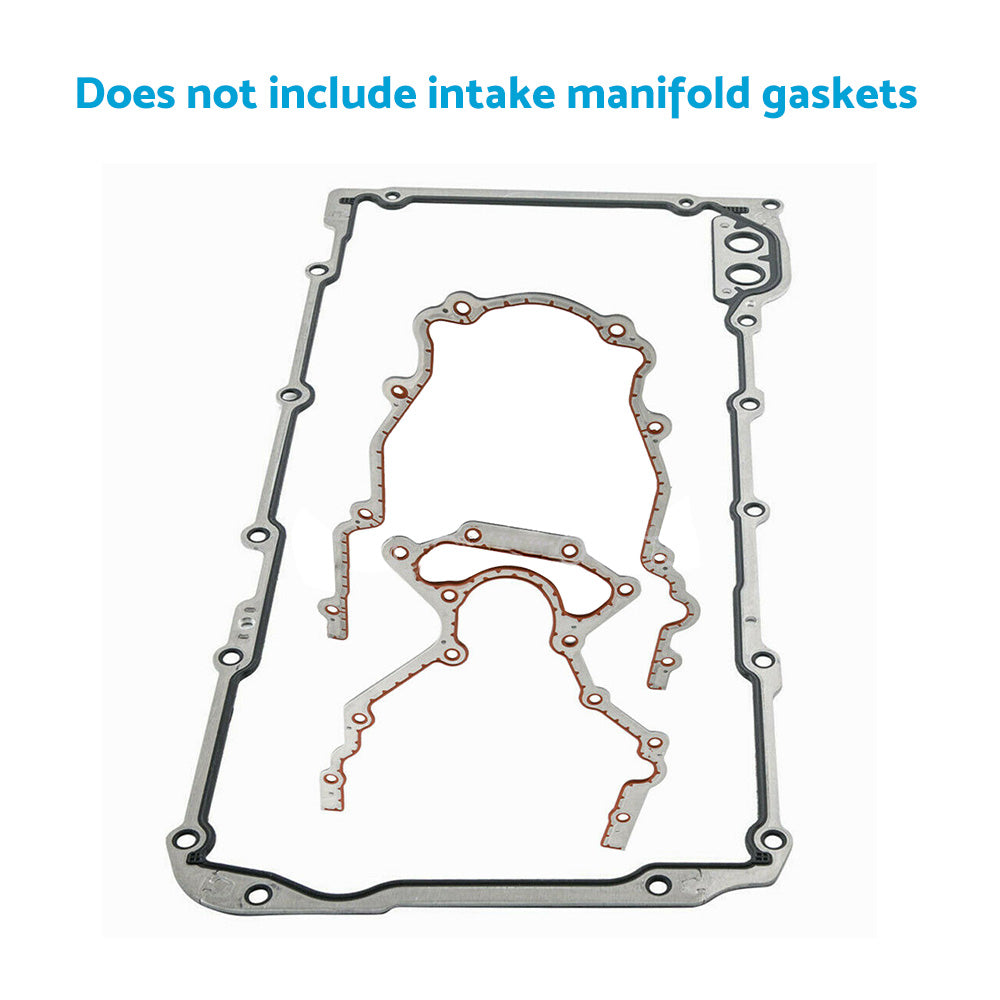

Gasket kit only includes what is listed above and does not include intake manifold gaskets.

🔧 Compatible Vehicles

Make Model Years Engine
Cadillac CTS 2007 2.8L Petrol
Cadillac CTS 2004-2005, 2008 3.6L Petrol
Cadillac CTS 2006 5.7L Petrol
Cadillac Escalade 2007-2009, 2011-2014 6.2L Petrol
Cadillac Escalade 2010 Electric
Cadillac SRX 2009 3.0L Petrol
Cadillac SRX 2004-2005 3.6L Petrol
Cadillac SRX 2006-2008 4.6L Petrol
Cadillac STS 2006 4.4L Petrol
Cadillac STS 2005, 2007 4.6L Petrol
Chevrolet Avalanche 2007-2013 5.3L Petrol
Chevrolet Camaro 2010, 2015 3.6L Petrol
Chevrolet Camaro 2011-2014 6.2L Petrol
Chevrolet Colorado 2015-2016 2.8L Diesel
Chevrolet Corvette 2006, 2008-2009 6.0L Petrol
Chevrolet Corvette 2010-2011, 2013 6.2L Petrol
Chevrolet Corvette 2007, 2012 7.0L Petrol
Chevrolet Silverado 1500 2010 4.3L Petrol
Chevrolet Silverado 1500 2007-2009, 2011-2014 5.3L Petrol
Chevrolet Suburban 1500 2014 5.3L Petrol
Chevrolet Suburban 1500 2007 6.0L Petrol
Saab 9-3 2011 1.9L Diesel
Saab 9-3 2003-2006, 2008-2010 2.0L Petrol
Saab 9-3 2007 2.8L Petrol
Saab 9-5 2004, 2006-2009 2.0L Petrol
Saab 9-5 2005 2.3L Petrol
Saab 9-5 2003 3.0L Petrol
Compatible with:
Suitable for GM Chevrolet LS1/LS6/LQ4/LQ9/4.8L/5.3L/5.7L/6.0L.
These gaskets can also be used with LS3, LS2, and 6.0L iron blocks, as well as 4.8L/5.3L and LS1/LS6 applications.


The head gasket is the key component of the engine. It seals the internal combustion process, ensures maximum compression, and prevents coolant and oil from mixing.
The head gasket set is combined with a conversion gasket set / lower gasket set to form a full gasket set for the entire engine. Cylinder head bolts hold the cylinder head and gasket in place, ensuring reliability under high pressure. Replace worn gaskets and bolts promptly to maintain engine performance.
