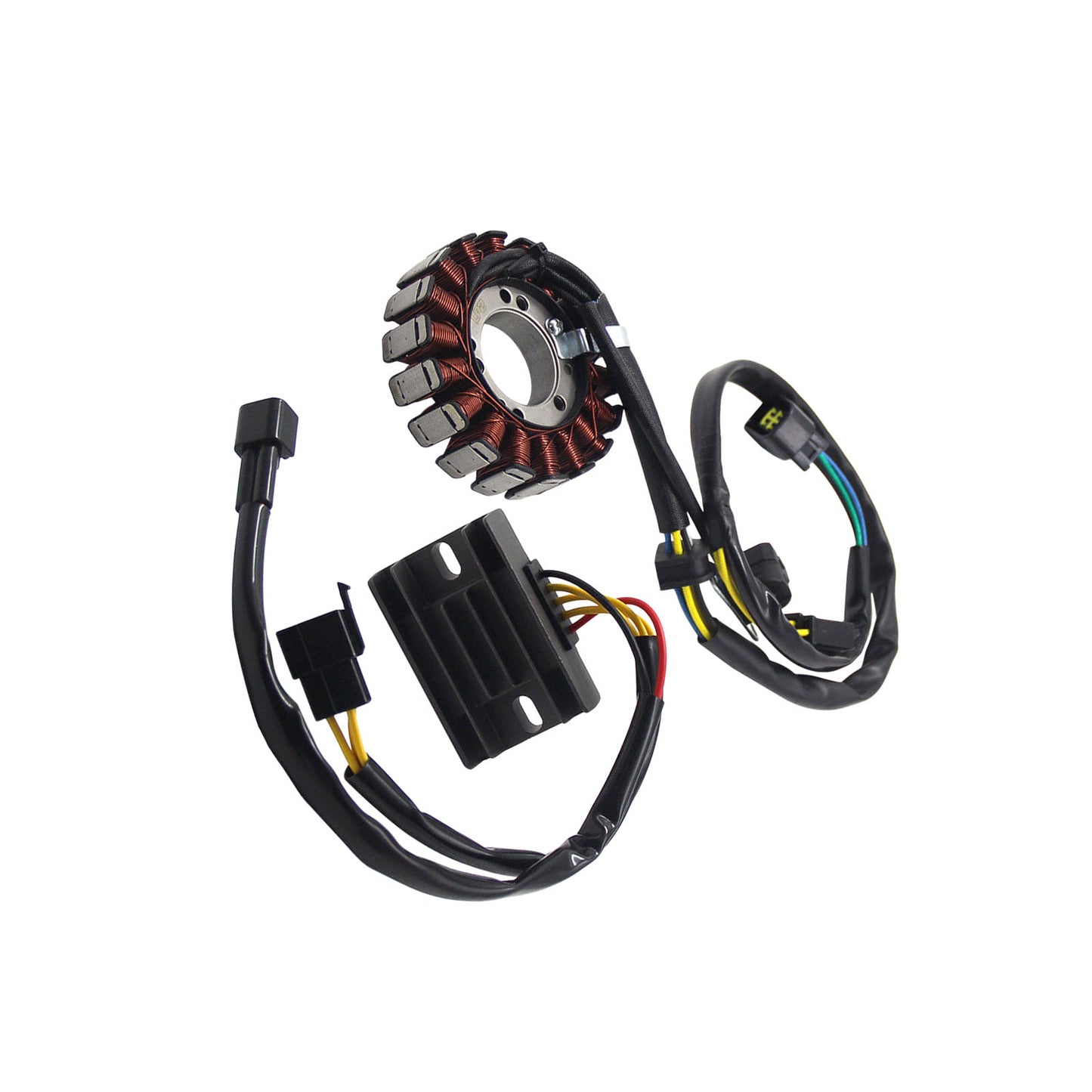

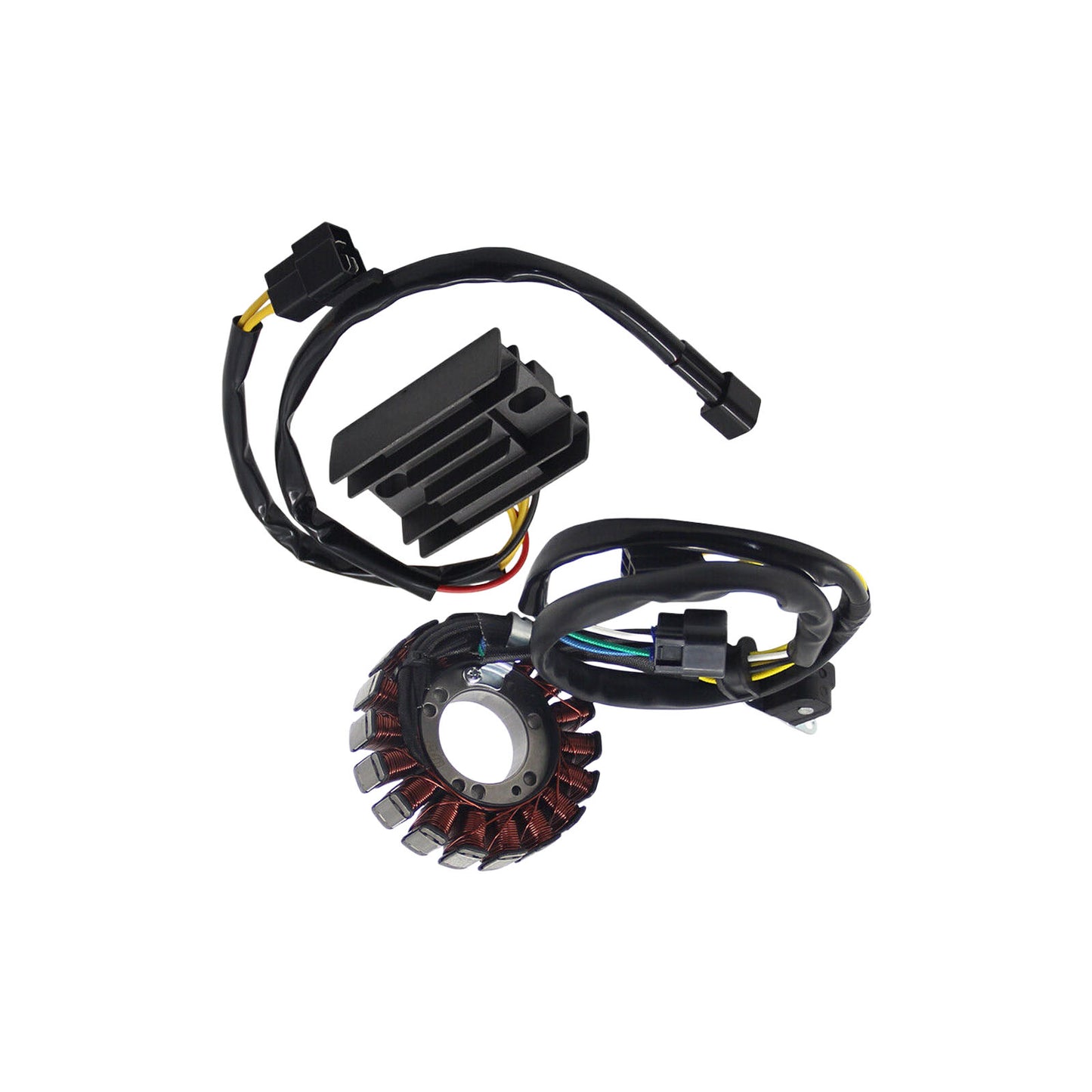

Stator + Regulator Rectifier + Gasket Suitable for Suzuki DRZ400 Kawasaki KLX400

Specifications:

• Type: Stator + Regulator Rectifier + Gasket
• Machine Type: Dual Sport Motorcycle, Road Motorcycle

• Quantity: 1 Kit

• Warranty: 1 Year

For Stator:

• Number of plugs: 2
• Number of wires: 7
• Number of pins: 3 + 4
• Number of poles: 18
• Interior diameter: 34 mm
• Exterior diameter: 93 mm
• Pick-up pulsar coil included

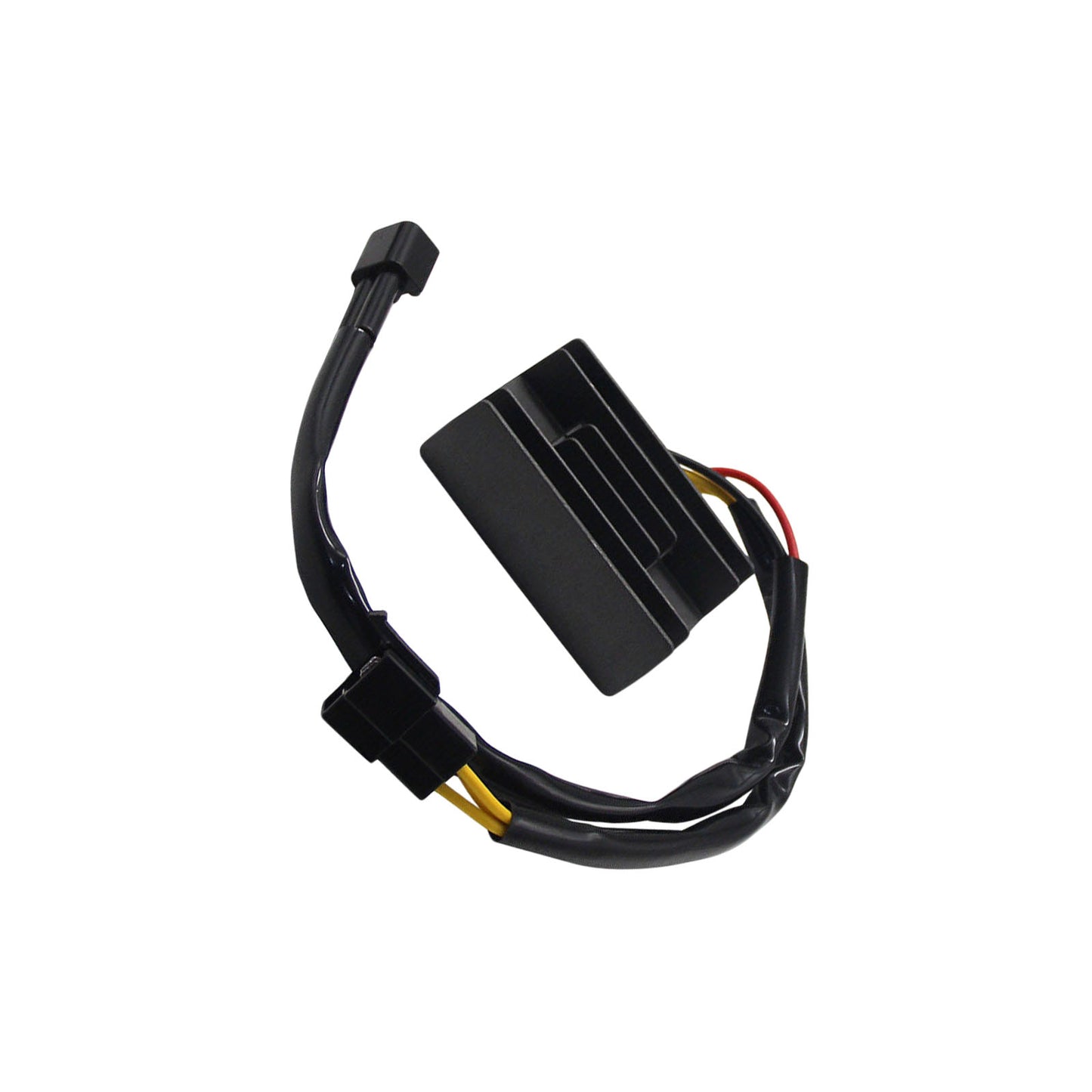

For Regulator:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 3 + 2

Replacement Part Number:

• For Suzuki:
  • Stator Assy: Suitable for 32101-29F00, 32101-29F10, 32101-29F11
  • Rectifier, regulator: Suitable for 32800-29F00
  • Gasket, generator cover: Suitable for 11483-29F00
• For Kawasaki:
  • Stator Assy: Suitable for 21003-S007
  • Rectifier, regulator: Suitable for 21066-S005
  • Gasket, generator cover: Suitable for 11061-S085

Compatible With:

• Suitable for Suzuki DRZ400 DR-Z400 2000-2004
• Suitable for Suzuki DRZ400 DR-Z400E 2000-2007/2009
• Suitable for Suzuki DRZ400 DR-Z400S 2000-2019
• Suitable for Suzuki DRZ400 DR-Z400SM 2005-2019
• Suitable for Kawasaki KLX400 KLX400R 2003-2004
• Suitable for Kawasaki KLX400 KLX400SR 2003-2004

Package Includes:

• 1 x Generator Stator
• 1 x Voltage Regulator

• 1 x Crankcase Gasket

Note:
Please note that all parts sold on this platform are aftermarket products.
While they are compatible with specific vehicle models, they are neither manufactured nor endorsed by the original equipment manufacturers (OEM).
All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
