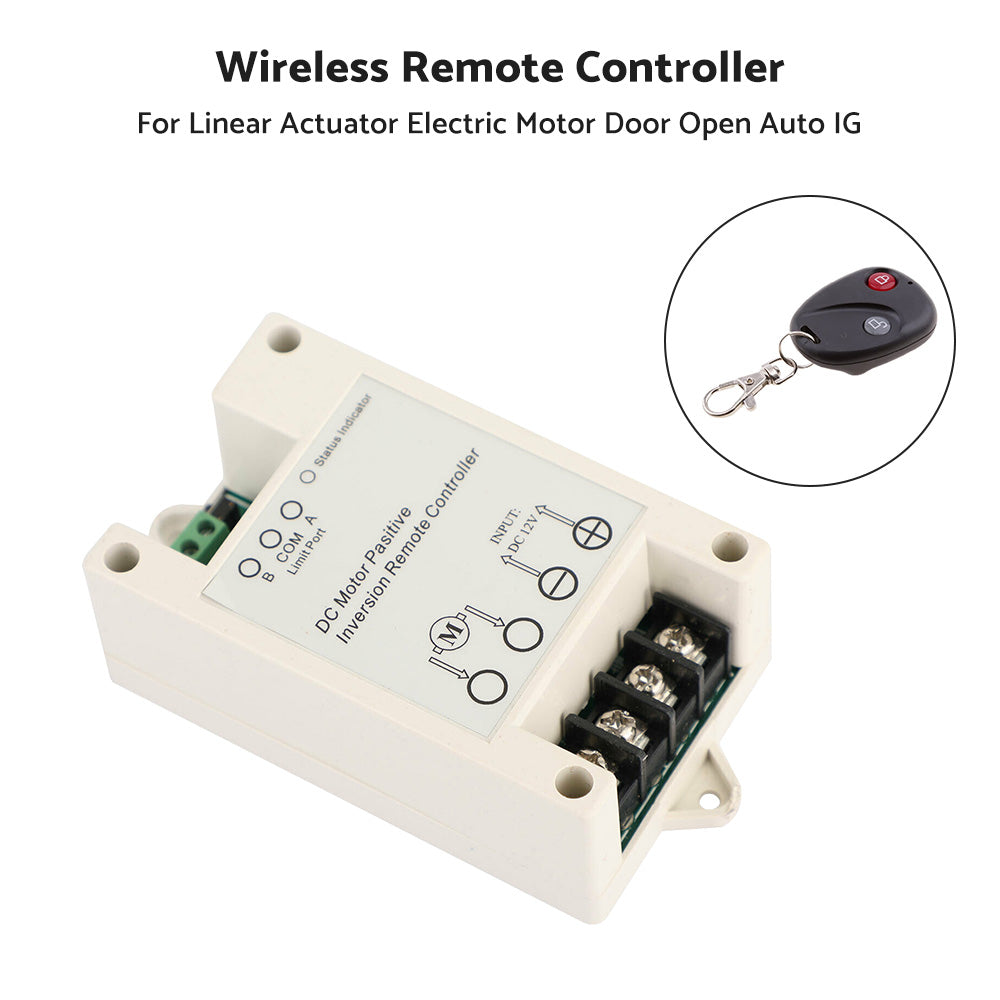

Wireless Remote Controller for Linear Actuator Electric Motor Door Open Auto IG

Description:

It owns the function to control DC motor’s positive inversion rotation, it can also control two-way DC loads. The controller can be operated by the wireless remote control or the manual buttons on the controller box which is very convenient for use. There are 3 operation modes: Jog Control, Self-Lock Control and Interlock Control, the 3 modes can be switched by the manual buttons, users can set and choose any of the three modes based on actual requirements.

Feature：
- Wide voltage design, operating voltage range is DC 9-30V.

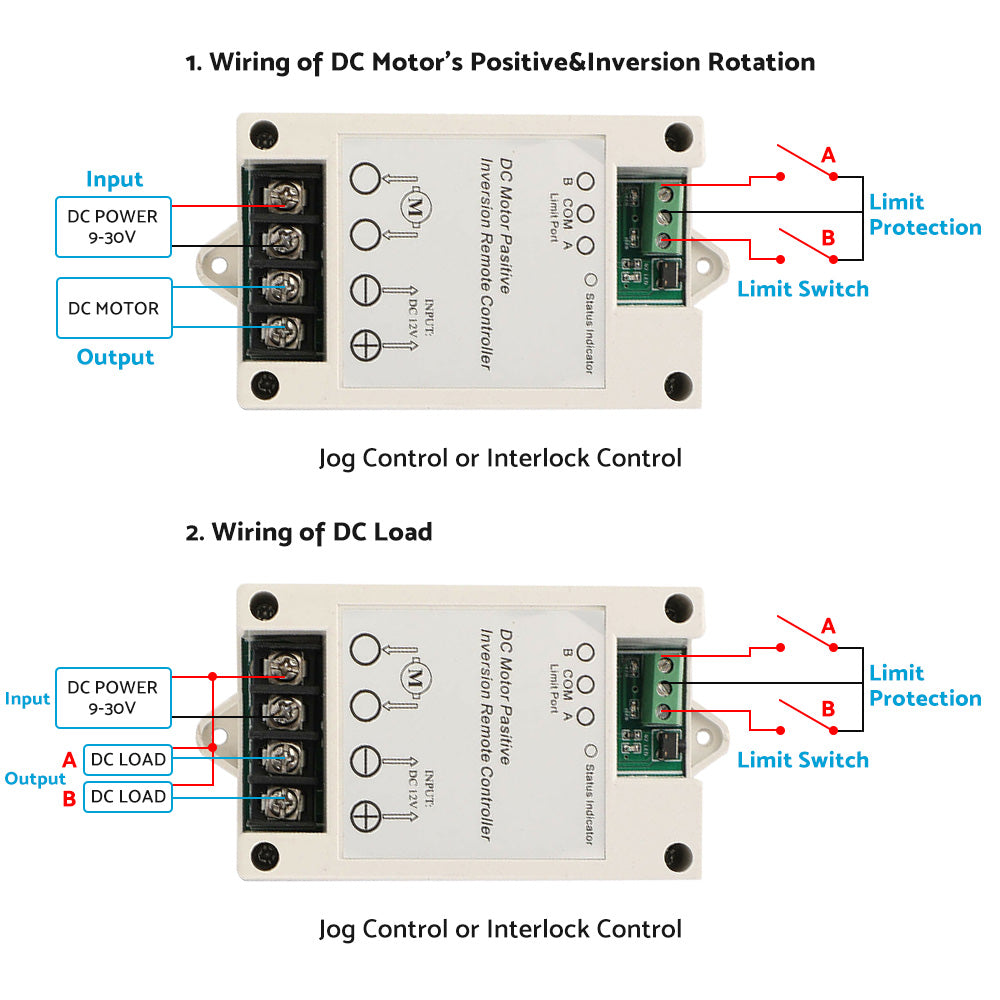

-Two channels output, can control DC motor’s positive inversion rotation or control two-way DC loads.

-Three control modes (Jog Control, Self-Lock Control, Interlock Control) are switchable, easy for operation.

-The internal fuse is with over-current, over-load and short-circuit protection.

-With manual buttons and wireless remote, convenient for use.

-Can be operated by the wireless remote or the manual buttons on the controller box.

-The wireless remote is with learning function, easy for coding.

-With million groups address coding which are independent, high reliability and industrial design.

-With highly sensitive receiver, remote control distance is more than 50meters.

-With limit terminal, users can add external limit switch for actual needs.

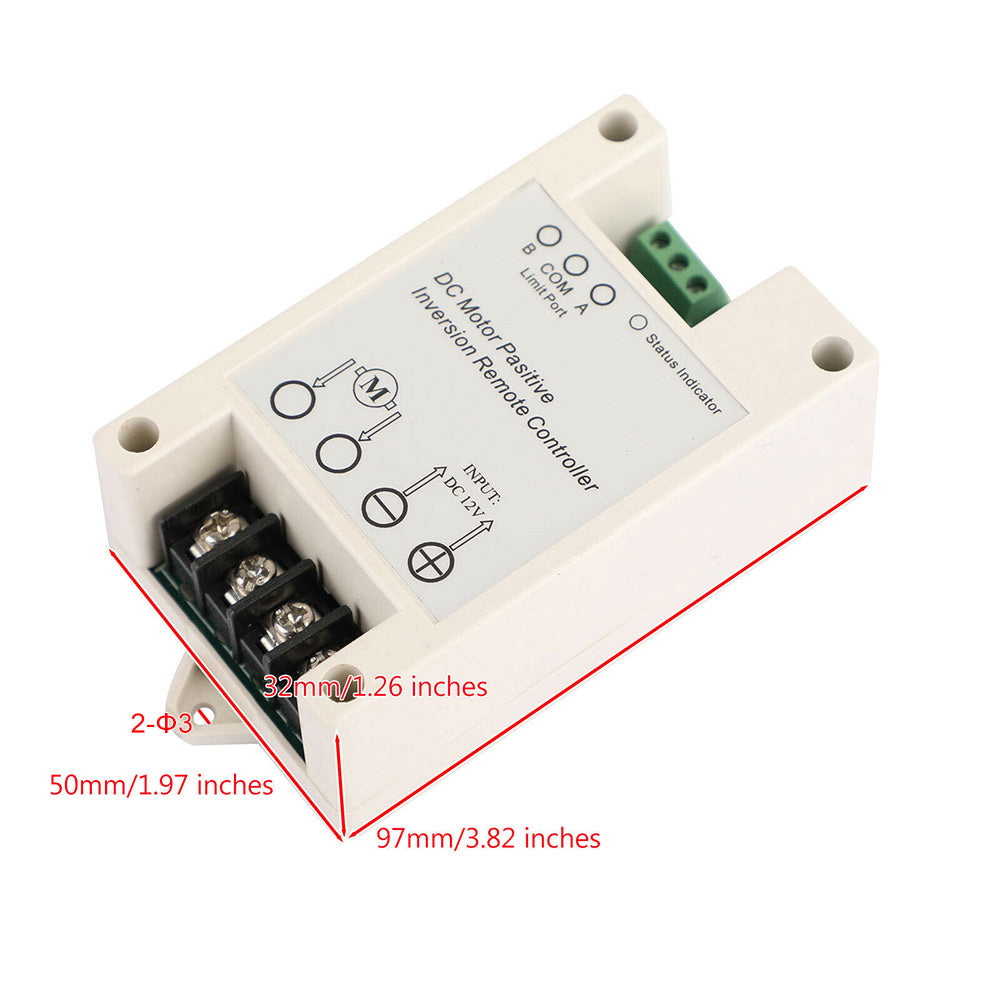

Specification:

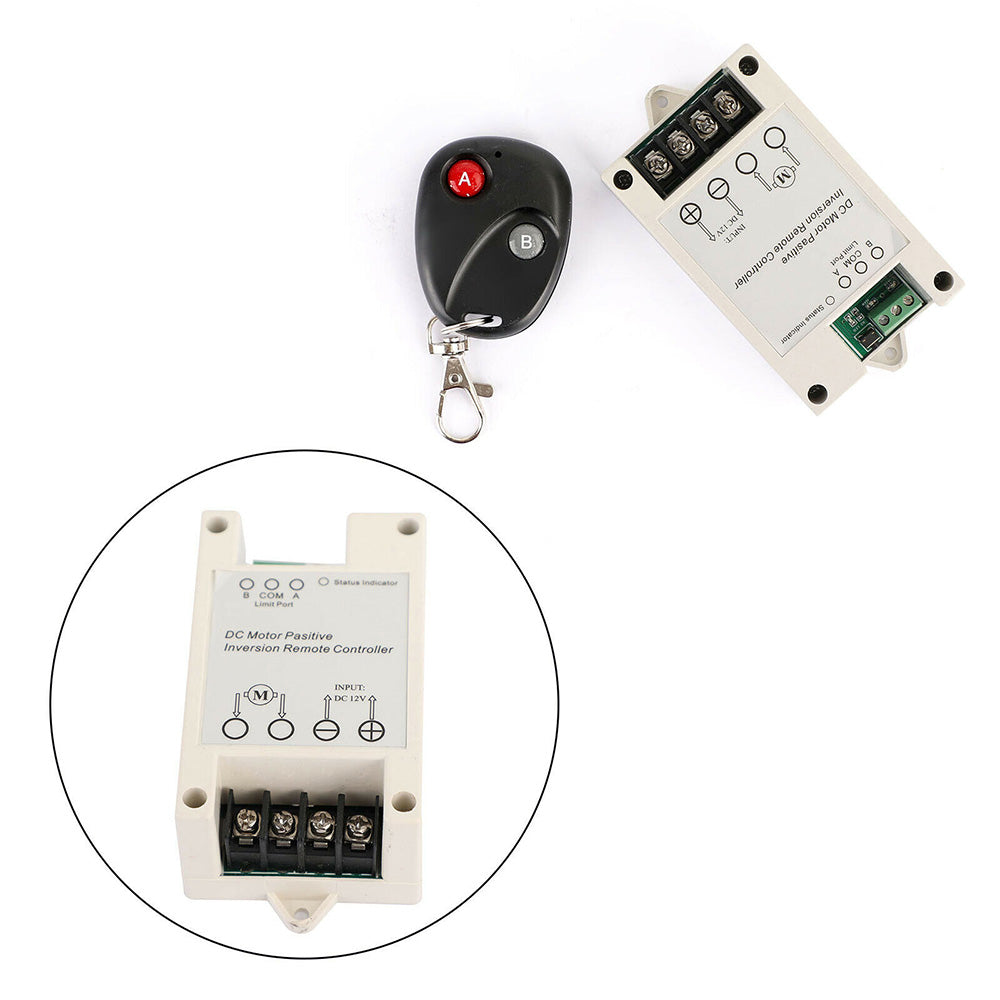

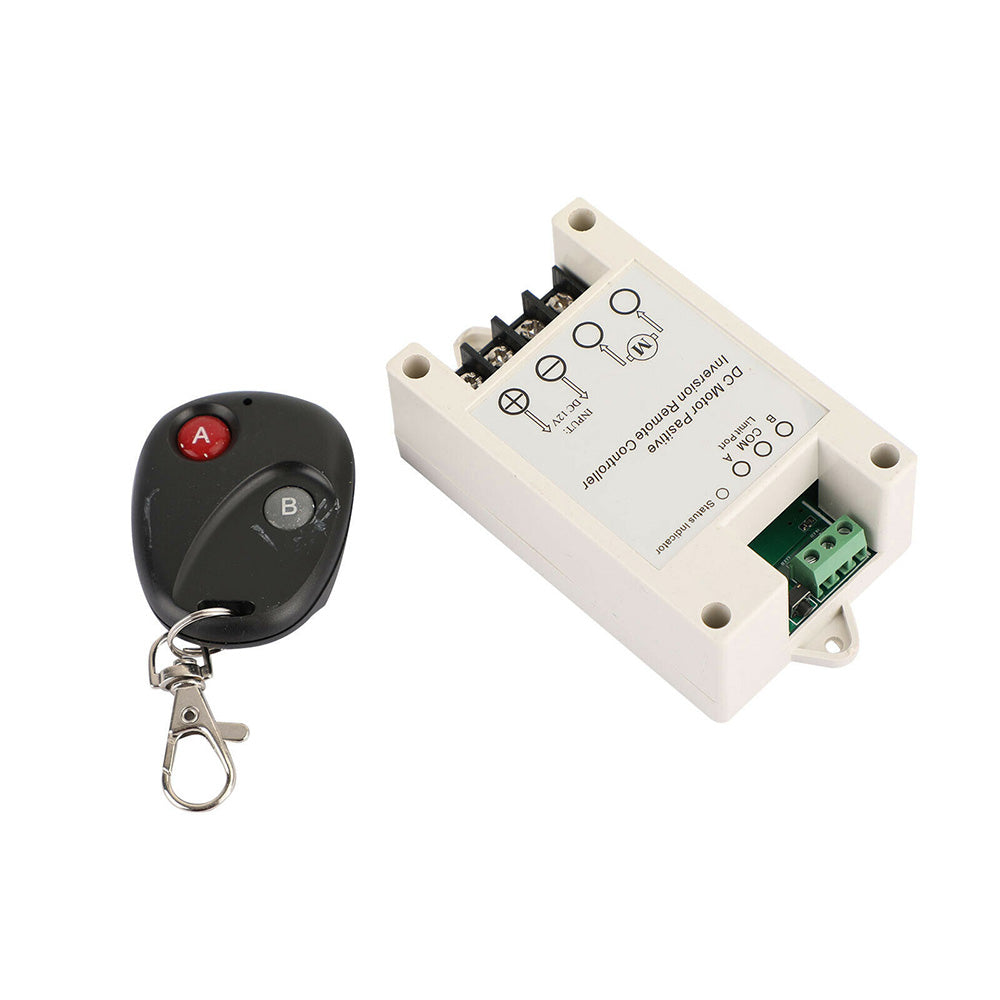

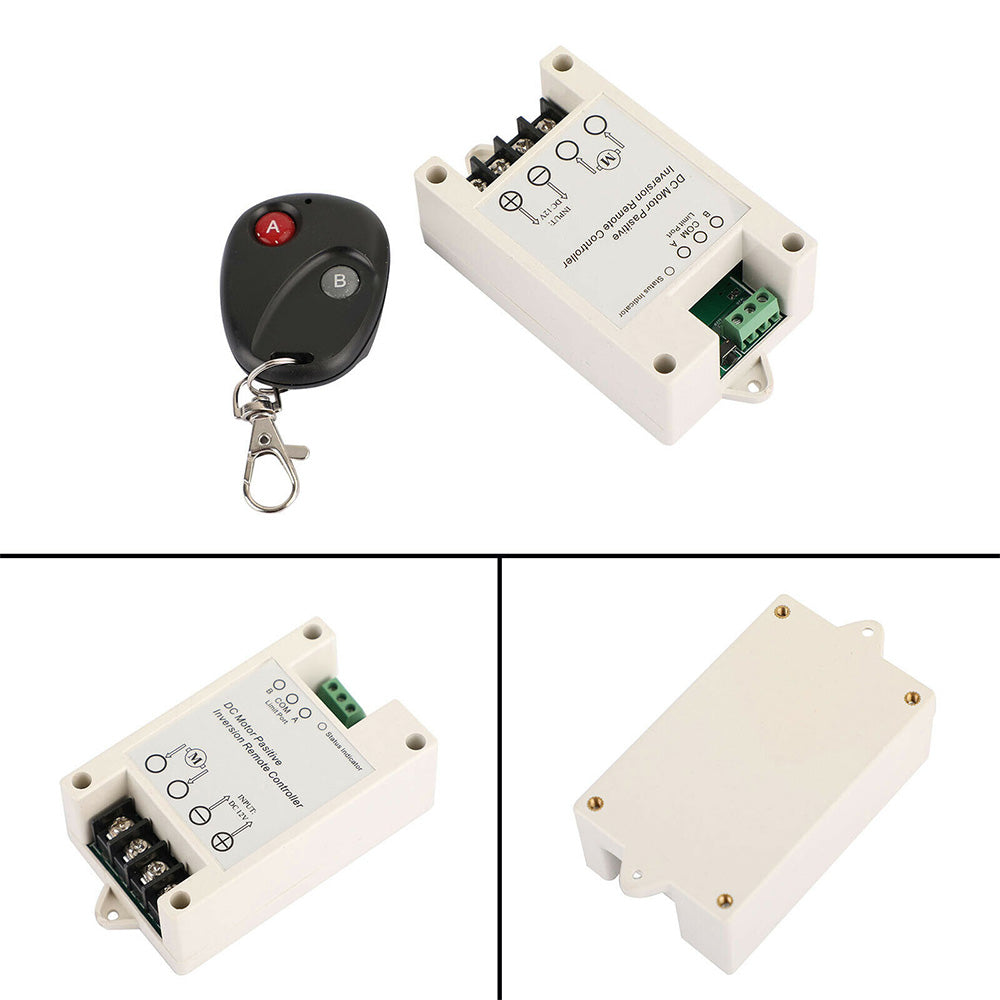

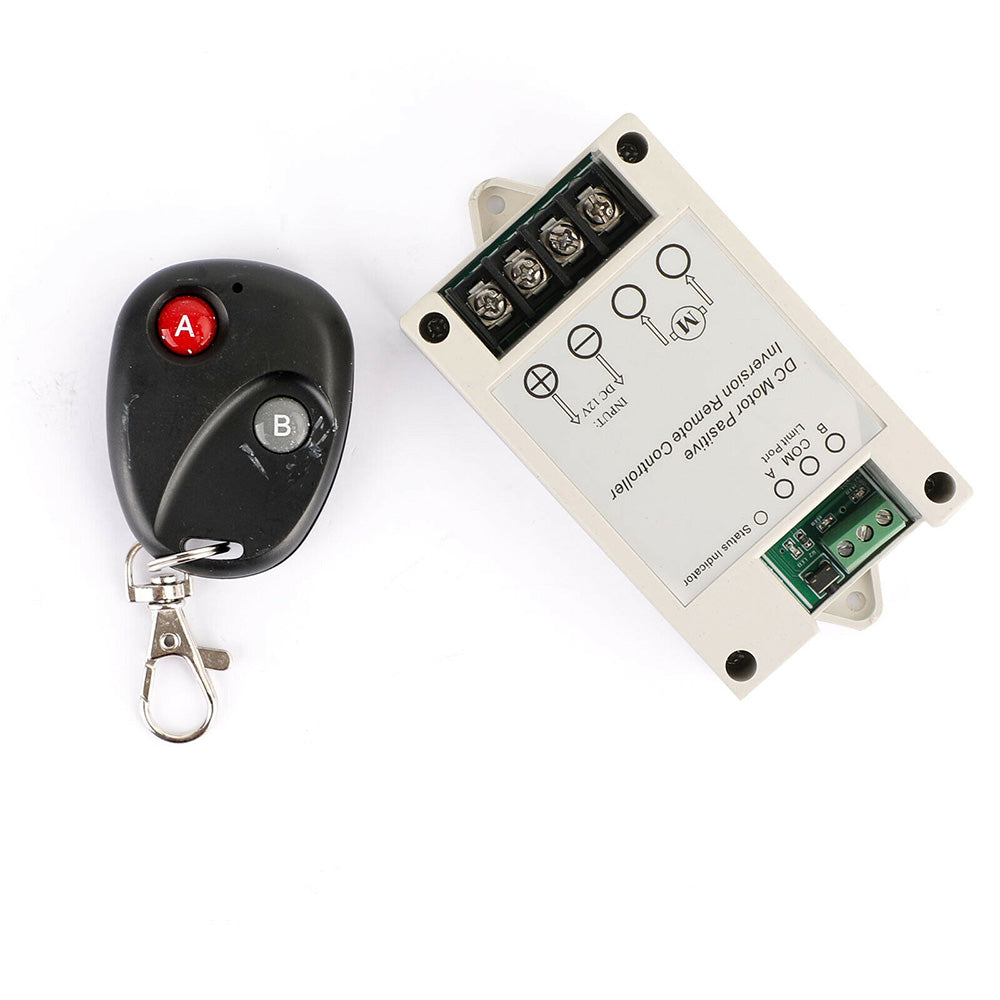

Package Included:

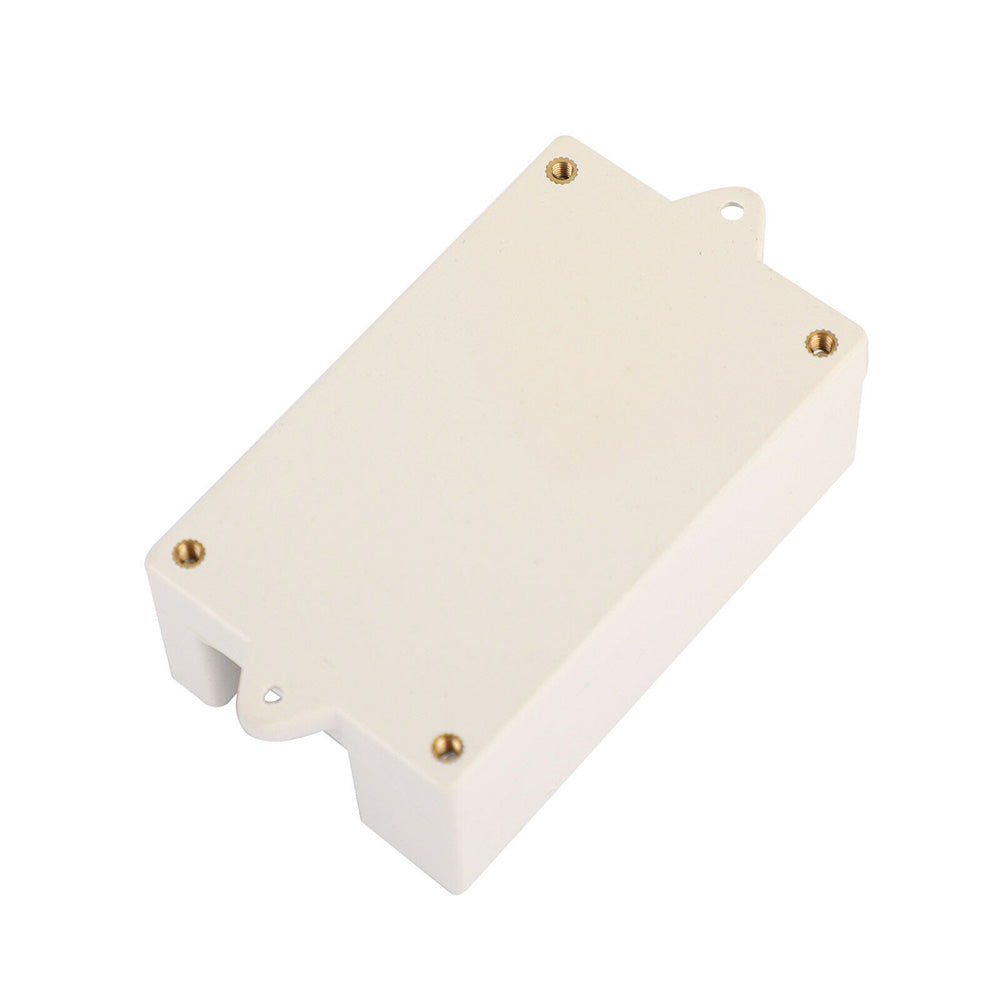

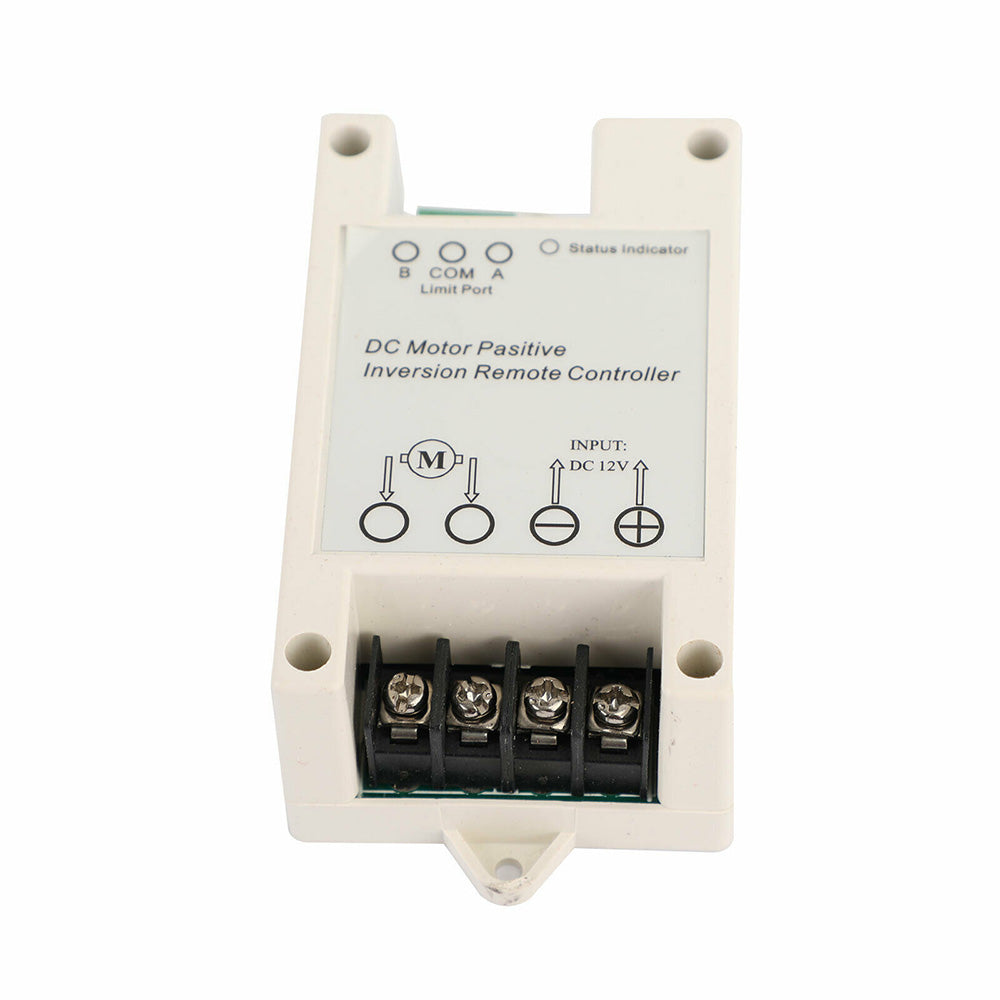

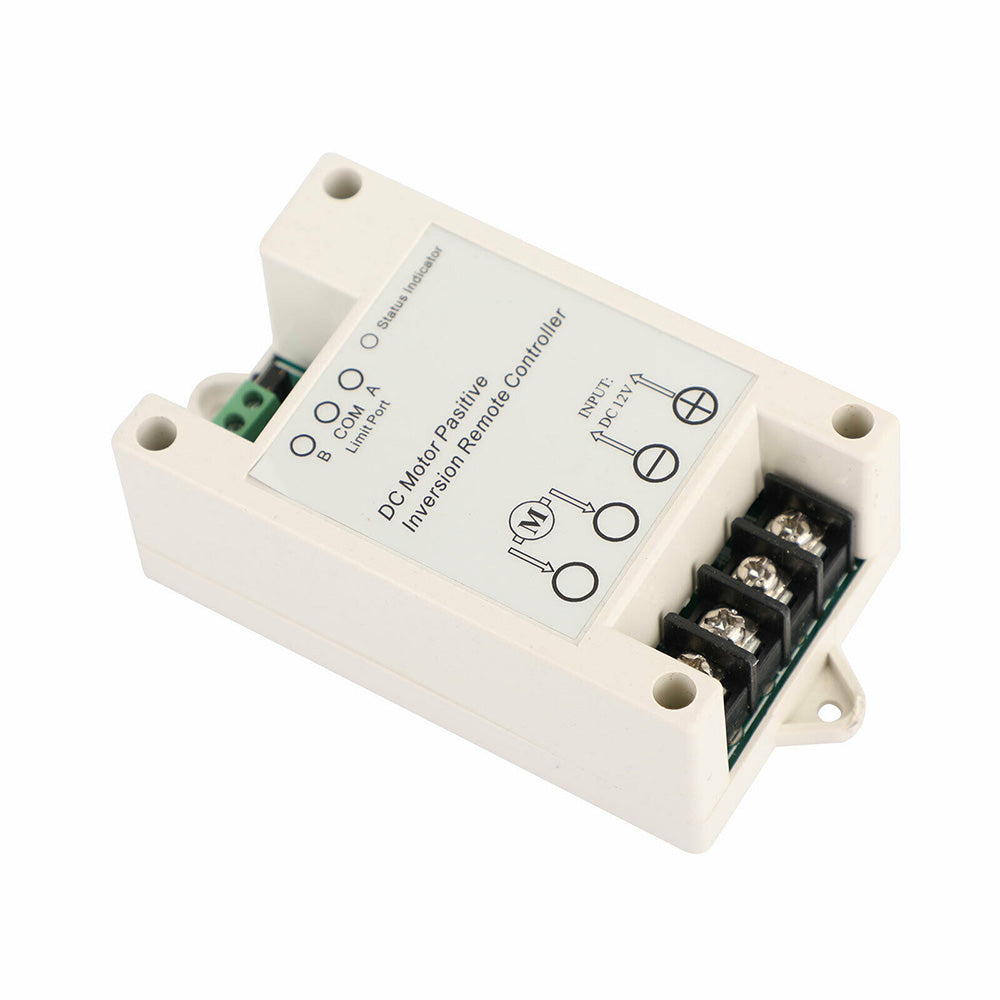

1X Electronic Controller Box.

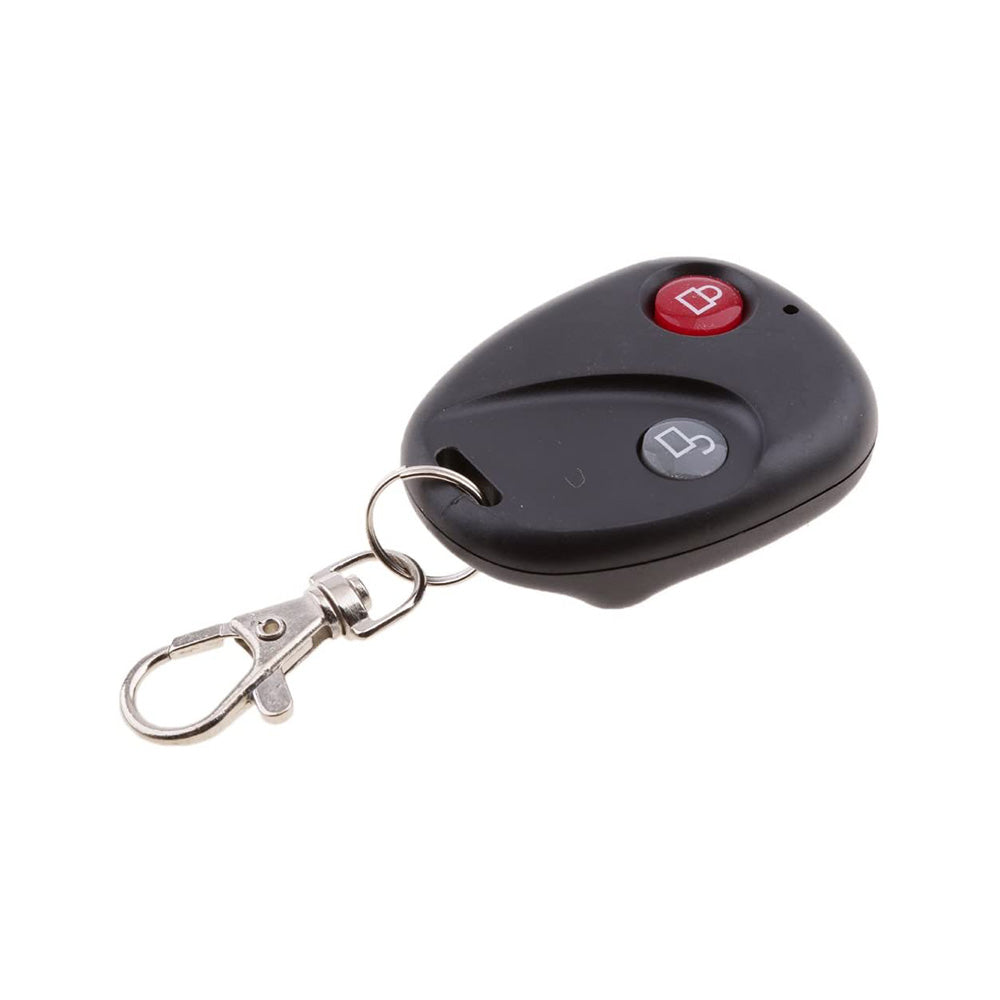

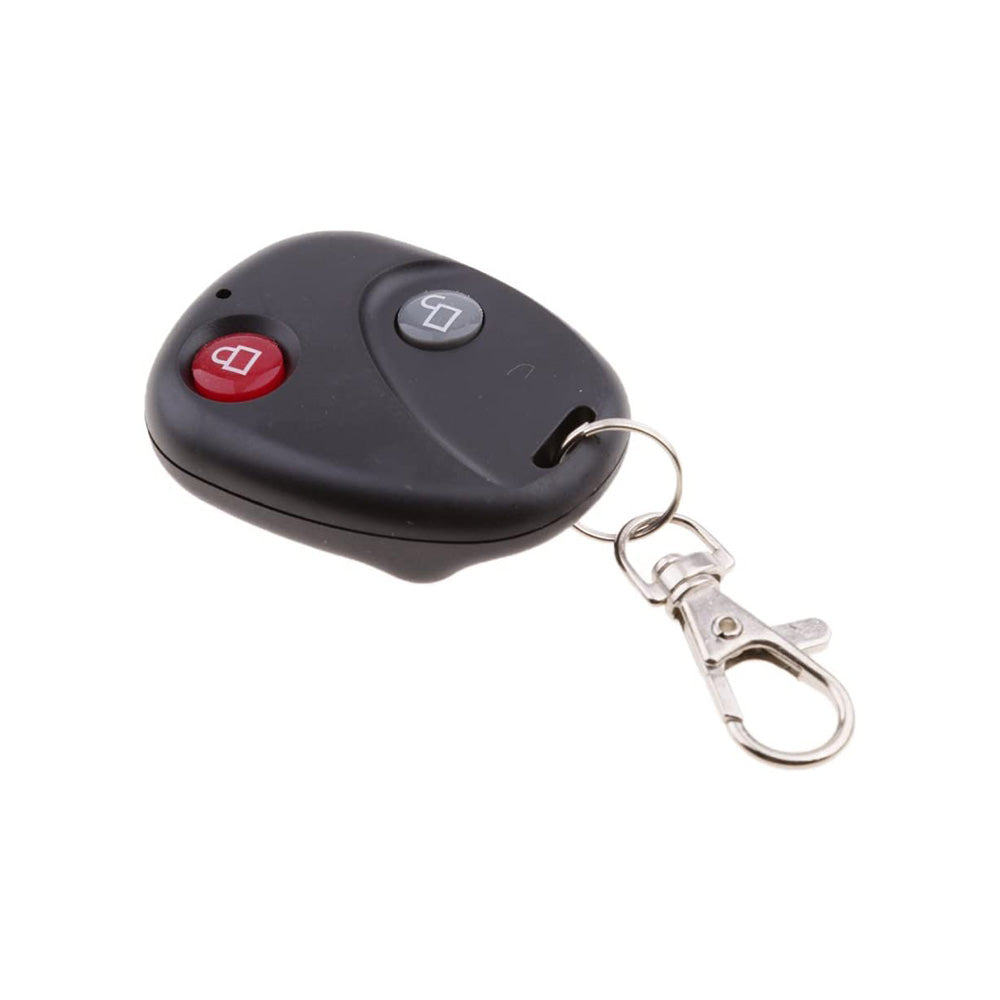

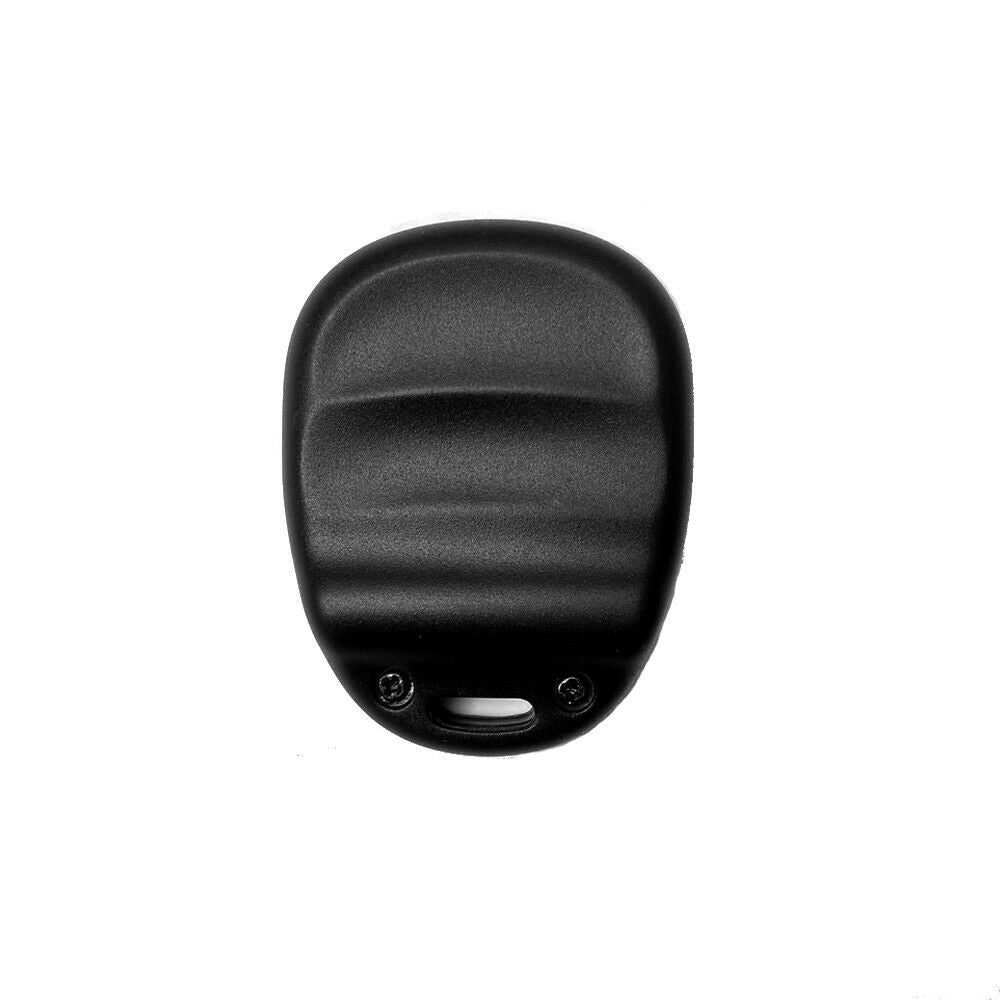

1X Wireless Remote.
